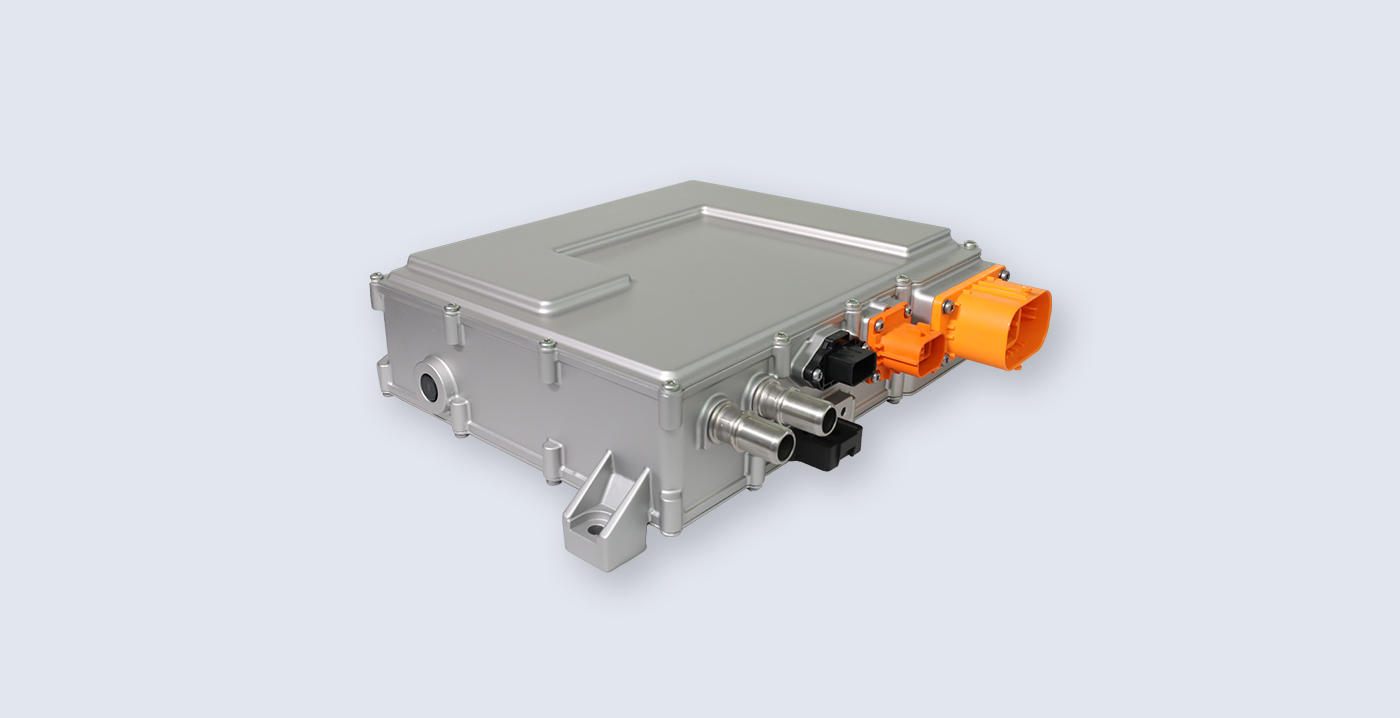

Integrated charging control unit (ICCU) combines on-board charger (OBC) and low-voltage DC-DC converter (LDC) into one system. It performs all high-to-low voltage conversion functions necessary for charging high-voltage batteries, bidirectional V2X power conversion, and supplying power to in-vehicle electronic devices. This reduces system complexity and minimizes the number and size of components, maximizing space utilization in the vehicle and minimizing energy conversion losses to improve system efficiency.
Hyundai KEFICO continues to develop customized products that integrate various control functions based on integrated and standalone charging control technologies.
- Features
-
Integration of OBC & LDCHigher efficiency by less system complexitySmaller & LighterEnha nced cost competitiveness and space utilizationUpto 92%Power conversion efficiencyfrom 400V to 800VCompatible with various platformsA-SPICE CL2, ISO26262 ASILEnsured quality at a global levelAUTOSAR basedstandard S/W architectureOTA (Over the Air)Wireless S/W update with cybersecurity (ISO21434)
- Specifications
-
Specifications
* These figures indicate a product lineup range, not a single product
Specifications Battery System 400 - 800V Efficiency > 92% Input Voltage OBC : 1 Ph. 161-285Vac, 3 Ph. 360-440Vac
LDC : 160-482VdcOutput Voltage OBC : 160~482 Vdc
LDC : 7~16 VdcOutput Power OBC : 1 Ph 7.2kW / 3 Ph 11kW / V2L Max.3.68kW
LDC : 2.4kWIP IP67, IP6K9K
-
